  World's first and largest manufacturer of Electric Staplers since 1949!



Special Stapler, Staples and Bag Sealers

Plier Staplers

Model ST694P Heavy Duty Plier Stapler

  • Rugged all-metal heavy-duty construction
  • Excellent for many stapling applications including corrugated cardboard, cloth product, product assembly
  • 2.5 (6.4 cm) throat depth
  • 1/2" (12.5-mm) opening at front reduces to 3/8" (9.5-mm) at rear of throat
  • Re-loads in seconds
  • Uses , 3/8 and staples (No. STH5019 series)

Also available as:

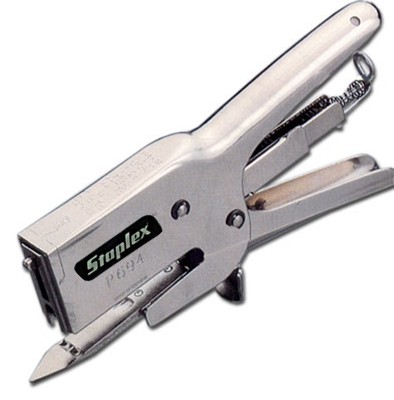

  • Model ST694SP

       Box Closing Plier Stapler

       with sword point anvil







Model ST694BS Heavy Duty Bag Sealer Plier Stapler

  • Excellent for closing many types of bags
  • Rugged all-metal heavy-duty construction
  • Excellent for many plastic, fishnet and other bag materials
  • Re-loads in seconds
  • Uses , 3/8 and staples (No. STH5019 series)

Model ST694BP Manual Tube Plier Stapler with blunt point anvil

  • for stapling plastic caps on cardboard mailing tubes and other applications requiring a snub nose for stapling close to an edge.)
  • Uses , 3/8 and staples (No. STH5019 series)

Model ST779BP Pneumatic Tube End Cap Plier Stapler with blunt point anvil

  • heavy duty air plier stapler especially designed to staple plastic end caps to close fiberboard tubes 1 (2.5 cm) diameter or larger.

  • special narrow Blunt Point Snub Nose allows positioning staples so that the staple legs clinch on the inside of the plastic, assuring secure and safe transportation of the fiberboard tube and its contents.

  • also fastens two thicknesses of corrugated or four thicknesses of single wall board.

  • excellent tool for assembling cartons and containers, pallet lids and bottoms, corrugated trays and wrappings, fiber-drums, fiberboard displays and numerous other applications

  • fast and effortless

  • loads 168 staples

Model ST779BP Pneumatic Tube End Cap Plier Stapler with blunt point anvil - uses 1/2" crown x Flat .050" Wire staples

No. ST779-3/8 3/8"  Staples  (5,000/box)

No. ST779-1/2 1/2  Staples (5,000/box)

No. ST779-5/8 5/8"  Staples  (5,000/box)



For heavier wire gauge, order:

Model ST777BP Pneumatic Tube End Cap Plier Stapler with blunt point anvil - uses 1/2" crown x Flat .090" Wire staples  loads 100 staples (all other specs same as ST779BP)

No. ST777-3/8 3/8"  Staples (2,400/box)

No. ST777-1/2 1/2  Staples (2,400/box)

No. ST777-5/8 5/8"  Staples  (2,400/box)

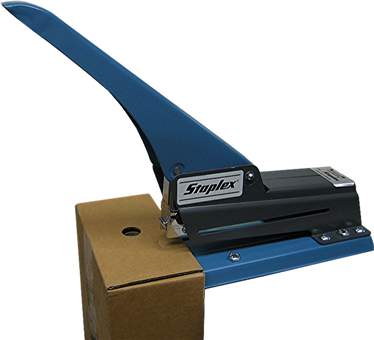

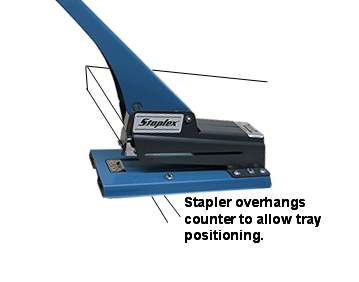

Staplex® HD-X and HD-XS Manual Carton Tray Stapler

  • Ideal for stapling corner flaps of carton trays (tops and bottoms) without pliers!

  • Leveraged handle eliminates fatigued hands

  • Mounts to counter top or bench (mounting bolts and wing nuts included; 4 table holes required)

  • Uses Staplex Type HO Thick Gauge Staples (5/8" crown x 1/2" leg)

  • "Pop-out" front loading

  • Heavy duty all metal construction



Model HD-X Table-mounted Heavy Capacity Manual Tray Box Stapler with mounting hardware has 4-1/2" base width at clincher die, 2-3/4" reach

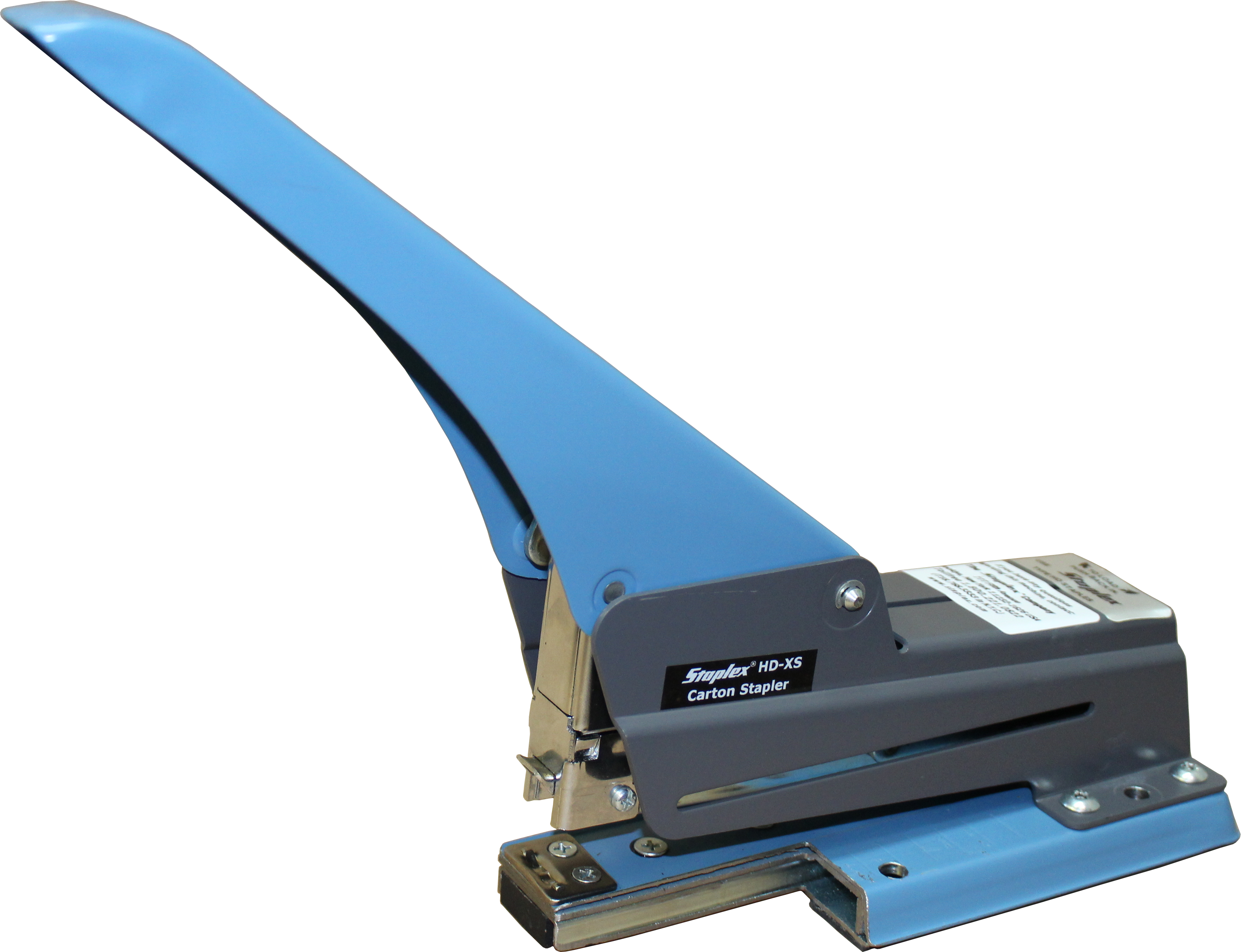

Model HD-XS Narrow Front Table-mounted Heavy Capacity Manual Tray Box Stapler with mounting hardware has 1-1/4" base width at clincher die [recommended for narrow tray flaps] and 2-3/4" reach.

Weighs 7-lbs. (3.2 kg),

Base Size: 4-1/2" (11.4 cm) wide,

11" (28 cm) long



Carton Closing Staplers & Staples

Staplex® MCC-150 Manual Carton Top Stapler

  • Secures corrugated cartons for safe shipments
  • Re-loads 150 staples in seconds
  • Uses 1-1/4" x 5/8" leg Staples (Staplex No. C32/15 Staples)
  • Adjustable staple clinch depth
  • Rugged construction
  • High strength, low-mass cast aluminum housing for comfortable all day use.
  • Top alignment handle for super-neat staple positioning on all size boxes
  • Made in U.S.A.

Weighs only 4.3 lbs. (1.7 kg) Dimensions: 3.75" wide, 19.5" deep and 12" high (9.5 cm x 49.5 cm x 30.5 cm).

Also available: Model MCC-150BOS Manual Carton Stapler (equal to Bostitch D60) for SW7437-5/8 5/8" and SW7437-3/4 3/4" Staples (1-11/32" crown width.)

Staplex® ACC-150 Air Carton Top Stapler

  • Secures corrugated cartons for safe shipments
  • Virtually effortless pneumatic operation eliminates operator fatigue, promotes neat box closures
  • Re-loads 150 staples in seconds
  • Uses 1-1/4" x 5/8" leg Staples (Staplex No. C32/15 Staples)
  • Adjustable staple clinch depth
  • Fast, portable, economical
  • Rugged construction
  • High strength, low-mass cast aluminum housing for comfortable all day use.
  • Requires 80 psi from air compressor
  • Made in U.S.A.

Weighs only 5.75 lbs. (2.6 kg). Dimensions: 4.25" wide, 16" deep and 8" high (10.8 cm x 40.6 cm x 20.3 cm).

Also available: Model ACC-150BOS Pneumatic Carton Stapler (equal to Bostitch D16-2AD) for SW7437-5/8 5/8" and SW7437-3/4 3/4" Staples (1-11/32" crown width.)

Pneumatic Hog Ring Bag Sealer & Hermetic Bag Sealer (for  Hermetic Air Tight Bag Sealer see below)

Staplex® Model SAB-1 Pneumatic Top Bag Sealer

Excellent for :

  • Poly bags
  • Ice bags
  • Burlap bags
  • Cloth bags
  • Net bags
  • Produce bags
  • Drawstring bags
  • Mesh bags

Staplex® Model SAB-1 Top Bag Sealer is designed for closing all types of poly, net, burlap and cloth bags, produce bags and ice bags.

Model SAB-1 features a touch trip activation for fast production operations at rates to 20 cycles per minute. Designed with an all steel staple mechanism and durable cast aluminum housing, Staplex® Model SAB-1 is air operated and includes a heavy duty bench mounting stand.

Model SAB-1 magazine re-loads in seconds with 300 Staplex Type "O" Ring Staples, which give a tight, tamper-resistant closure.

Typical time and money saving users of Staplex® Model SAB-1 Top Bag Sealer

  • Produce growers
  • Garden nurseries
  • Seafood packers
  • Chemical manufacturers
  • Dog bones and pet treats distributors
  • Bulk chemical distributors
  • Plant and tulip bulbs packagers
  • General food processors
  • Candy and confectioners
  • Contract packagers
  • Salt and Mineral packagers

Clinch Point:

17 (43.2 cm) maximum height from base (adjustable)

11 (27.9 cm) distance from housing

Ordering Information:

Model SAB-1 Pneumatic Top Bag Sealer With Mounting Stand (requires 80-100 psi compressed air source)

Type "O" Ring Staples, 5,000 per box (20 boxes per case)

Staplex® Model SAB-30 Pneumatic Top Bag Sealer

uses Staplex Type O-30 Ring Staples for large neck poly bags (3,500 staples per box)

Trigger activated.

Wide nose for fast and easy insertion of work to be sealed.

Ordering Information:

Model SAB-130 Pneumatic Top Bag Sealer  (requires 80-100 psi compressed air source)

Type O-30 Ring Staples, 3,500 per box (4 boxes per case)

(Send sample to Staplex factory to test your application.)

Model HR-PSII Max Packner Manual Hermetic Bag Sealer for Poly Bags

The most effective closure method for air-tight and water-tight sealing of poly bags for meat, fish, ice, produce, foods and other sundry goods.

Features

  • Manufactured entirely from stainless steel, aluminum and plastic.
  • Hermetically seal poly bags in seconds.
  • Easily loads 150 staples.
  • Rounded ends of staples prevent damage to bags or netting.

Staples

711-VO-AR Aluminum Staples 7/16 (11 mm) leg length (2,000 per box)

713-VO-AR Aluminum Staples 9/16 (13 mm) leg length (2,000 per box)

HR-PSII Specifications

Weight: 13.3-lbs. (6 kg.)

Length: 16-5/16" (41.4 cm)

Height: 25" (63.5 cm)

Width : 6-3/8" (16.2 cm)

Clinch Point:

10 (25.4 cm) maximum height from base (adjustable)

2 (5.1 cm) distance from housing

Also Available: Pneumatic Hermetic Bag Sealer for high volume applications.  Ask for more details.
